Uses highly durable proprietary materials to enhance traffic safety
Polyurethane elastomer products, Rubber pole and "Neo Post Cone" are registered trademarks of NOK.
(Trademark registration numbers 2178634, 2406089, 2406090, 6198055)
These new signs and facilities have been developed using NOK's rubber compounding and processing technologies to facilitate smooth traffic flow and ensure safety in the ever-deteriorating traffic conditions. The main material used is highly reliable Polyurethane elastomer products which provides high functionality, durability, and safety that cannot be achieved with conventional rubber, plastic, or light metal.
Rubber pole makes the most of the high elasticity of the material, allowing it to return to its original shape even if it is accidentally run over by a wheel and bent.
Conventionally, the head was foamed, but by making it a cap (solid), the durability of the head has been improved by about 7 times.
By strengthening the adhesion between the two layers, the durability of the main body has been improved by approximately 10 times.
By adopting a high-brightness prism-type reflective sheet, we have improved brightness by approximately two times compared to our previous models.
By adopting a high-brightness prism-type reflective sheet, CO2 emissions have been reduced by 40%.
The measurement results are evaluation results under our specified conditions, and do not guarantee improved durability when installed in the market. For structural drawings, please see "Download CAD data for Iron Rubber Traffic Safety Products (TSSD)" on our website.
The Rubber pole body is bent 90 degrees at a frequency of 15 times per minute, and maintains its resilience even after 300,000 bends.
Rubber pole maintains its resilience even when stepped on 10,000 times with a load of 10kN.
A 2-ton vehicle was used to collide with Rubber pole at a speed of 40 km/h, and even after passing the tires over Rubber pole five times and suddenly braking five times, no damage occurred and the vehicle maintained its resilience.
Even when a 20-ton truck runs over Rubber pole three times at a speed of 80 km/h, it does not sustain any damage and maintains its resilience.

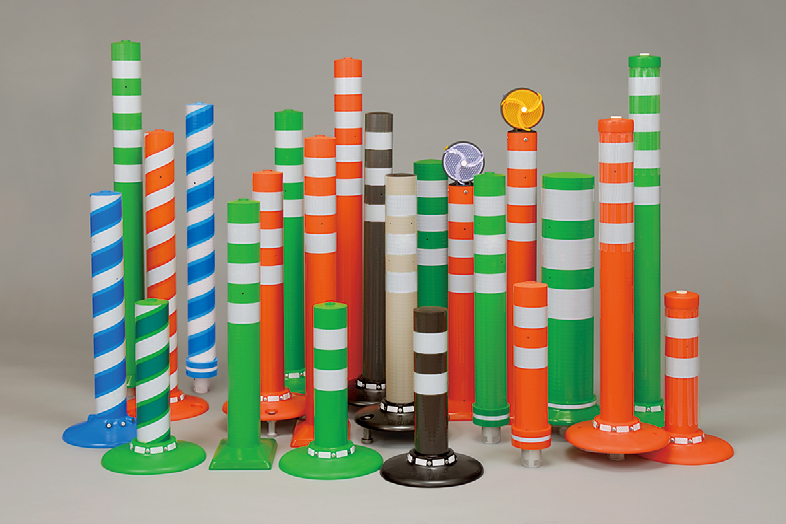

This is a visual guidance sign developed with an emphasis on visibility and durability.
You can choose the product that suits your road needs from a wide variety of options.
The large diameter pipe type, mini type, solar light-emitting type, and landscape-conscious type are not designed with reflective sheet protection.
A car stopper that is gentle on pedestrians and vehicles. It is lighter than metal car stops, making it easy to transport and install.

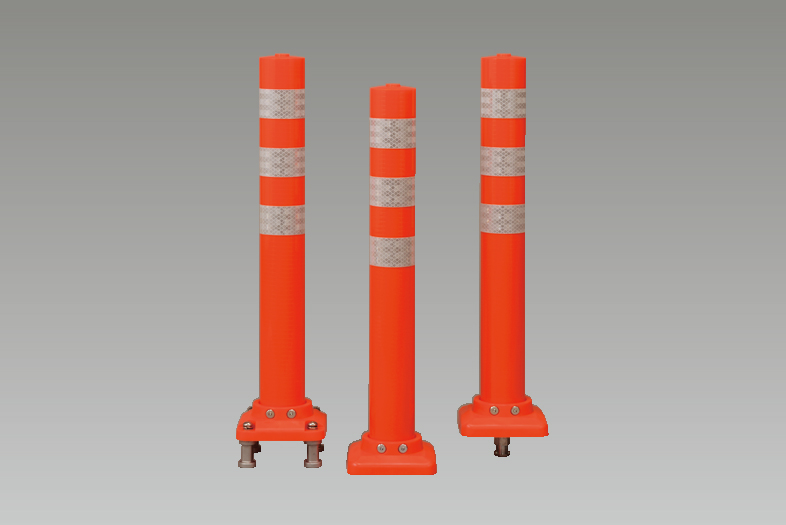

This is a small-diameter, soft vehicle intrusion prevention post that is gentle on people and easy to use.

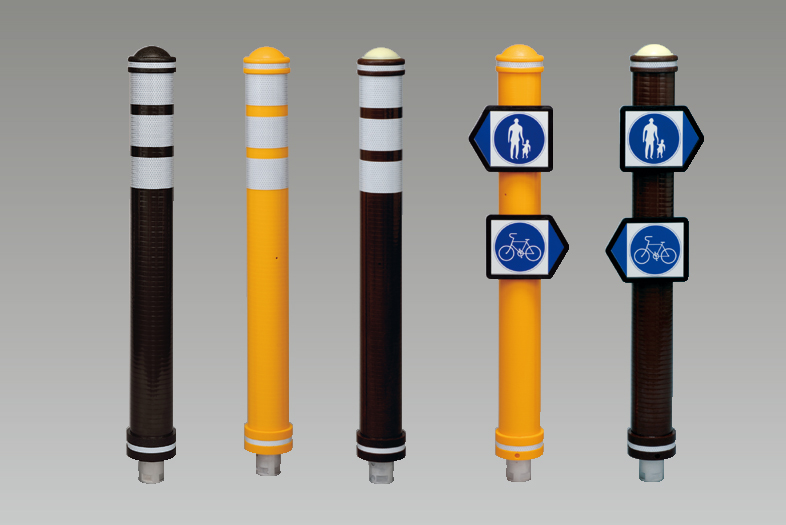

The glow-in-the-dark head type does not require a power source and glows in the dark. A signboard type is also available.

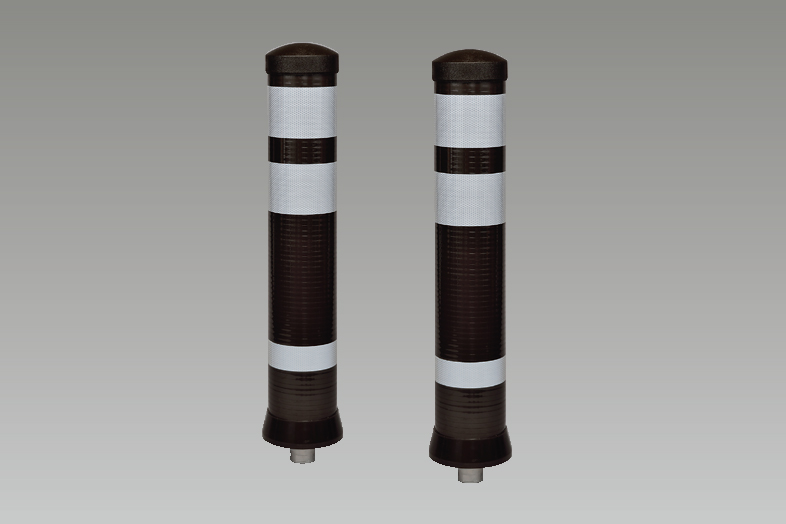

中央分離帯上・縁石上・路側帯・歩道に適した、本体パイプが交換可能な視線誘導標です。
アンカーボルト仕様もラインナップしました。

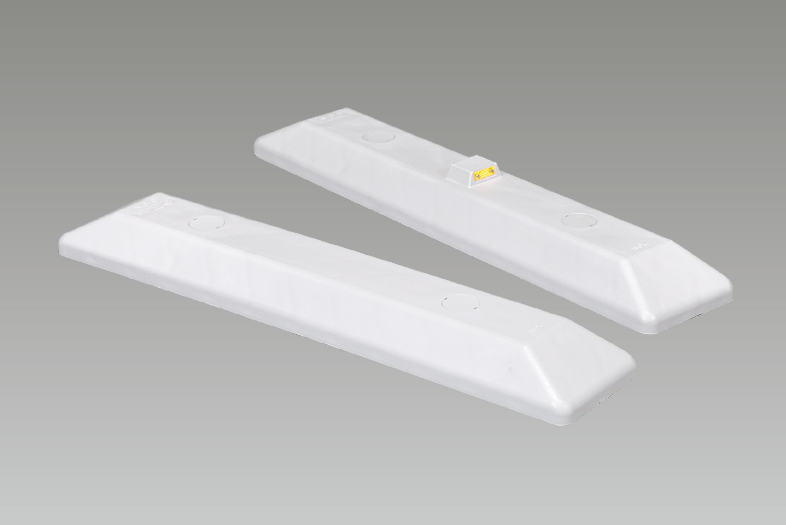

This is an environmentally friendly median strip block made from recycled plastic resin (JIS A 9401:2007 certified product).

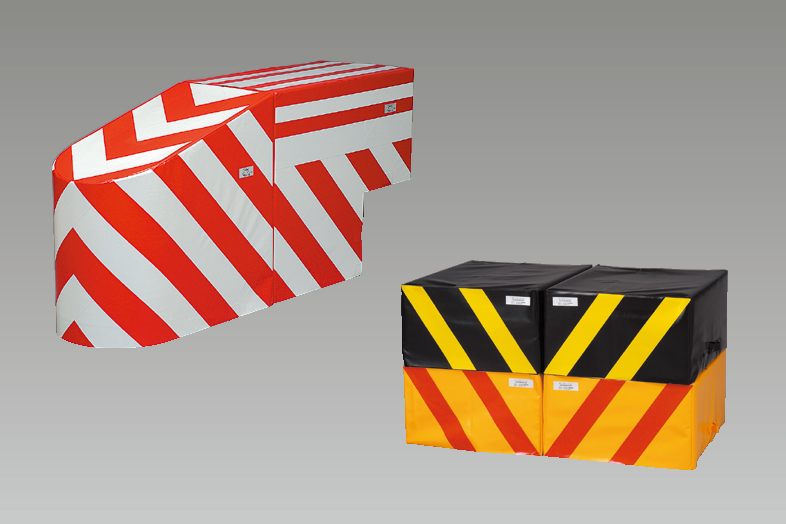

This device is installed in front of structures, such as road dividers and highway entrances and exits, to cushion the impact in the event of a vehicle collision.

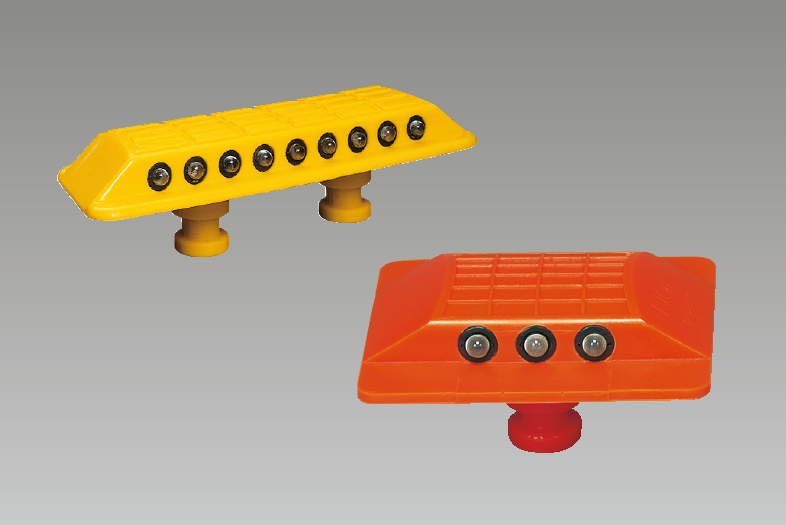

This road stud utilizes the properties of iron rubber (made of polyurethane rubber). Compared to metal studs, it reduces vibration and noise.

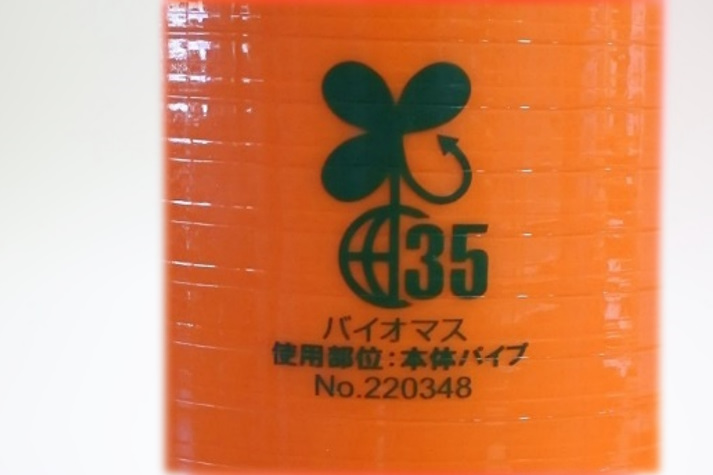

Rubber pole is made with environmentally friendly plant-derived materials (biomass materials).
This environmentally friendly Rubber pole uses 39% plant-derived polymer in the main pipe. While it has the same properties as the polyurethane elastomer used in conventional products, it reduces CO2 emissions in the manufacturing process of the raw material (polymer) by approximately 40% (based on NOK's unique calculation method), contributing to the realization of carbon neutrality. As with conventional products, it can be installed in either a fixed or detachable (3-legged) style, reducing the environmental impact while maintaining the role of Rubber pole in facilitating traffic flow and safety.
Rubber pole, Safety post, Lane separator cone, Flexible bollard has a two-layer structure of colored urethane and transparent urethane, which provides high durability and resilience to withstand repeated loads, and the high-brightness reflective sheet improves visibility. It is available in a variety of variations to suit the usage environment and purpose, and has a proven track record of being used on highways, general roads, urban areas, and commercial facilities.
We provide CAD data (dxf, PDF) of the external dimension drawing.
The only drawings that can be downloaded are for Rubber pole, Safety post, Lane separator cone, Flexible bollard.
We do not provide drawings for Oil seal, Packings, etc.
Please download the Excel data from the download button below and open the file. When the Excel screen appears, click the read-only button.
